Hampton Court Palace <East Molesey> [Hrsg.]; Wren Society [Hrsg.]; Wren, Christopher [Bearb.]: The ... volume of the Wren Society (Band 4): Hampton Court Palace, 1689 - 1702: original Wren drawings from the Sir John Soane's Museum and All Souls collections (Oxford, 1927)

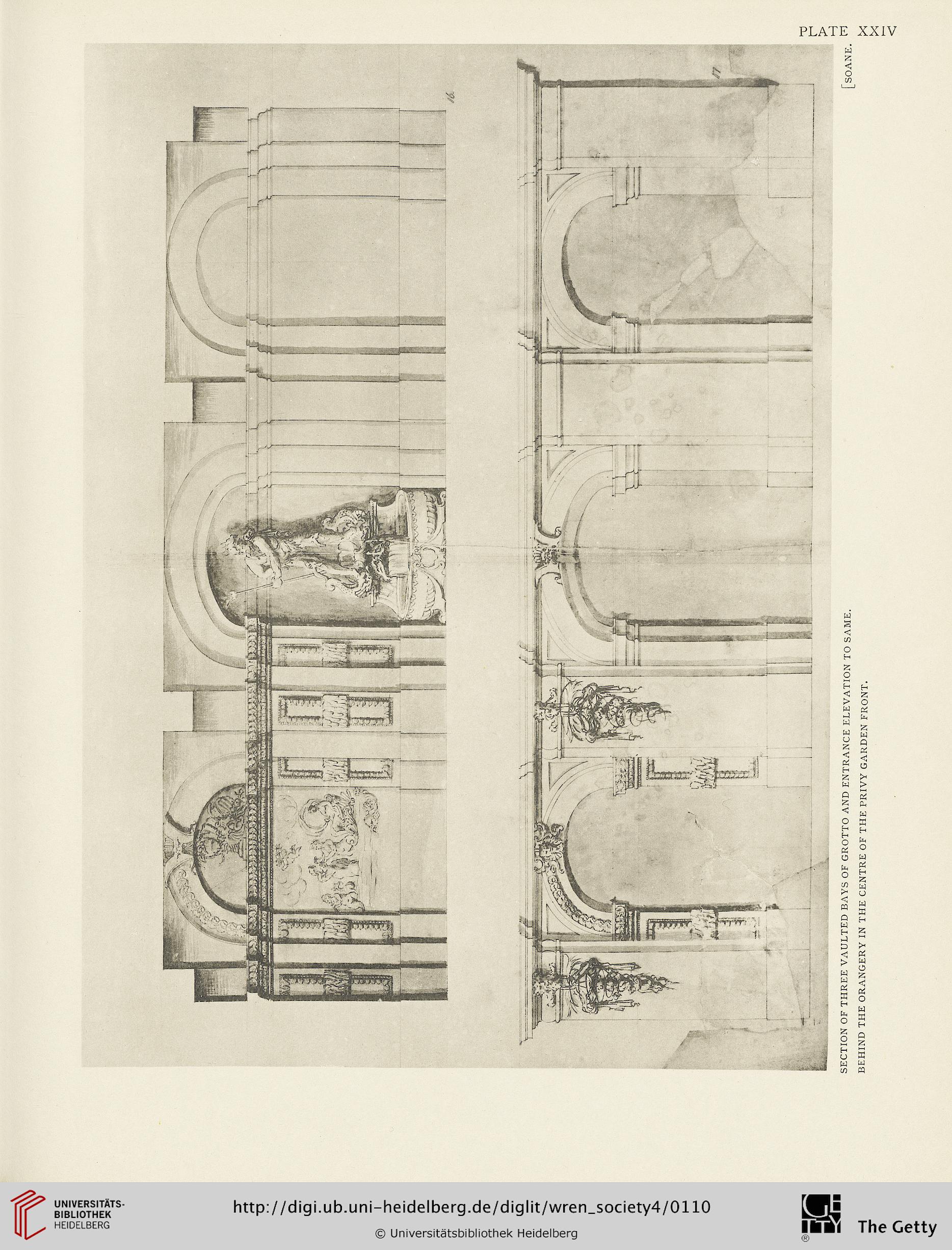

PLATE XXIV

SECTION OF THREE VAULTED BAYS OF GROTTO AND ENTRANCE ELEVATION TO SAME. [SOANE.

BEHIND THE ORANGERY IN THE CENTRE OF THE PRIVY GARDEN FRONT.
