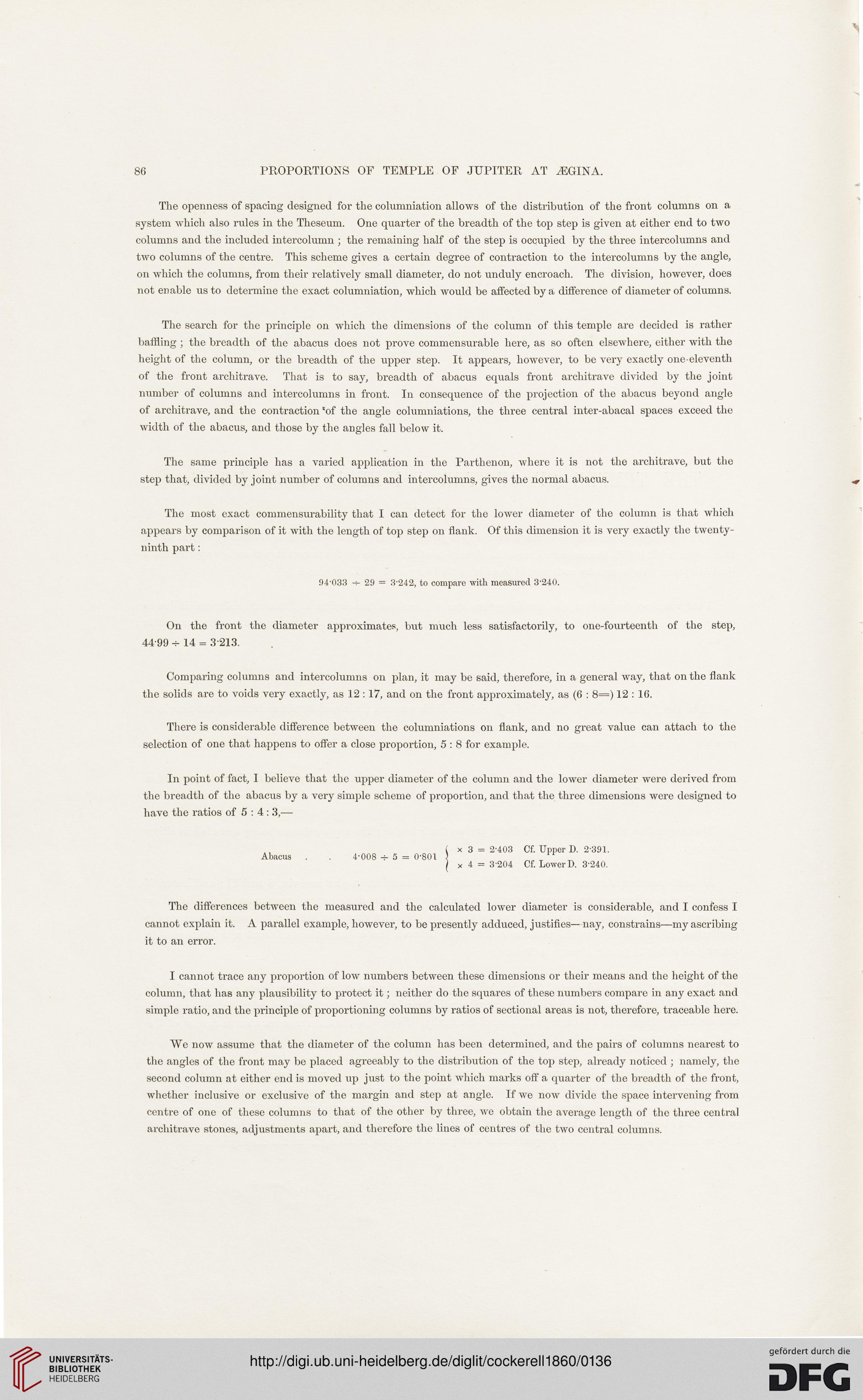

86 PROPORTIONS OF TEMPLE OF JUPITER AT iEGINA.

The openness of spacing designed for the columniation allows of the distribution of the front columns on a

system which also rules in the Theseum. One quarter of the breadth of the top step is given at either end to two

columns and the included intercolumn ; the remaining half of the step is occupied by the three intercolumns and

two columns of the centre. This scheme gives a certain degree of contraction to the intercolumns by the angle,

on which the columns, from their relatively small diameter, do not unduly encroach. The division, however, does

not enable us to determine the exact columniation, which would be affected by a difference of diameter of columns.

The search for the principle on which the dimensions of the column of this temple are decided is rather

baffling ; the breadth of the abacus does not prove commensurable here, as so often elsewhere, either with the

height of the column, or the breadth of the upper step. It appears, however, to be very exactly one-eleventh

of the front architrave. That is to say, breadth of abacus equals front architrave divided by the joint

number of columns and intercolumns in front. In consequence of the projection of the abacus beyond angle

of architrave, and the contraction 'of the angle columniations, the three central inter-abacal spaces exceed the

width of the abacus, and those by the angles fall below it.

The same principle has a varied application in the Parthenon, where it is not the architrave, but the

step that, divided by joint number of columns and intercolumns, gives the normal abacus.

The most exact commensurability that I can detect for the lower diameter of the column is that which

appears by comparison of it with the length of top step on flank. Of this dimension it is very exactly the twenty-

ninth part:

94-033 -r- 29 = 3-242, to compare with measured 3-240.

On the front the diameter approximates, but much less satisfactorily, to one-fourteenth of the step,

44-99 -f- 14 = 3-213.

Comparing columns and intercolumns on plan, it may be said, therefore, in a general way, that on the flank

the solids are to voids very exactly, as 12 : 17, and on the front approximately, as (6 : 8=) 12 : 16.

There is considerable difference between the columniations on flank, and no great value can attach to the

selection of one that happens to offer a close proportion, 5 : 8 for example.

In point of fact, I believe that the upper diameter of the column and the lower diameter were derived from

the breadth of the abacus by a very simple scheme of proportion, and that the three dimensions were designed to

have the ratios of 5 : 4 : 3,—

( x3 = 2-403 Cf. Upper D. 2-391.

Abacus . . 4-008 + 5 = 0-801 J rr

| x 4 = 3-204 Cf. Lower D. 3-240.

The differences between the measured and the calculated lower diameter is considerable, and I confess I

cannot explain it. A parallel example, however, to be presently adduced, justifies—nay, constrains—my ascribing

it to an error.

I cannot trace any proportion of low numbers between these dimensions or their means and the height of the

column, that has any plausibility to protect it; neither do the squares of these numbers compare in any exact and

simple ratio, and the principle of proportioning columns by ratios of sectional areas is not, therefore, traceable here.

We now assume that the diameter of the column has been determined, and the pairs of columns nearest to

the angles of the front may be placed agreeably to the distribution of the top step, already noticed ; namely, the

second column at either end is moved up just to the point which marks off a quarter of the breadth of the front,

whether inclusive or exclusive of the margin and step at angle. If we now divide the space intervening from

centre of one of these columns to that of the other by three, we obtain the average length of the three central

architrave stones, adjustments apart, and therefore the lines of centres of the two central columns.
